Mine operators are always looking for ways to increase job site productivity, and one of the best ways to do that is by enhancing the performance of longwall systems. Luckily, the CST45 V Drive System can help. This is an intelligent drive system that is ideal for face conveyors, and it offers a high level of efficiency in a compact design. Is this the right piece of CAT® equipment for your needs? As your go-to CAT dealers, we’re dedicated to helping you find the right option. Contact us today to get started.
Request a Quote

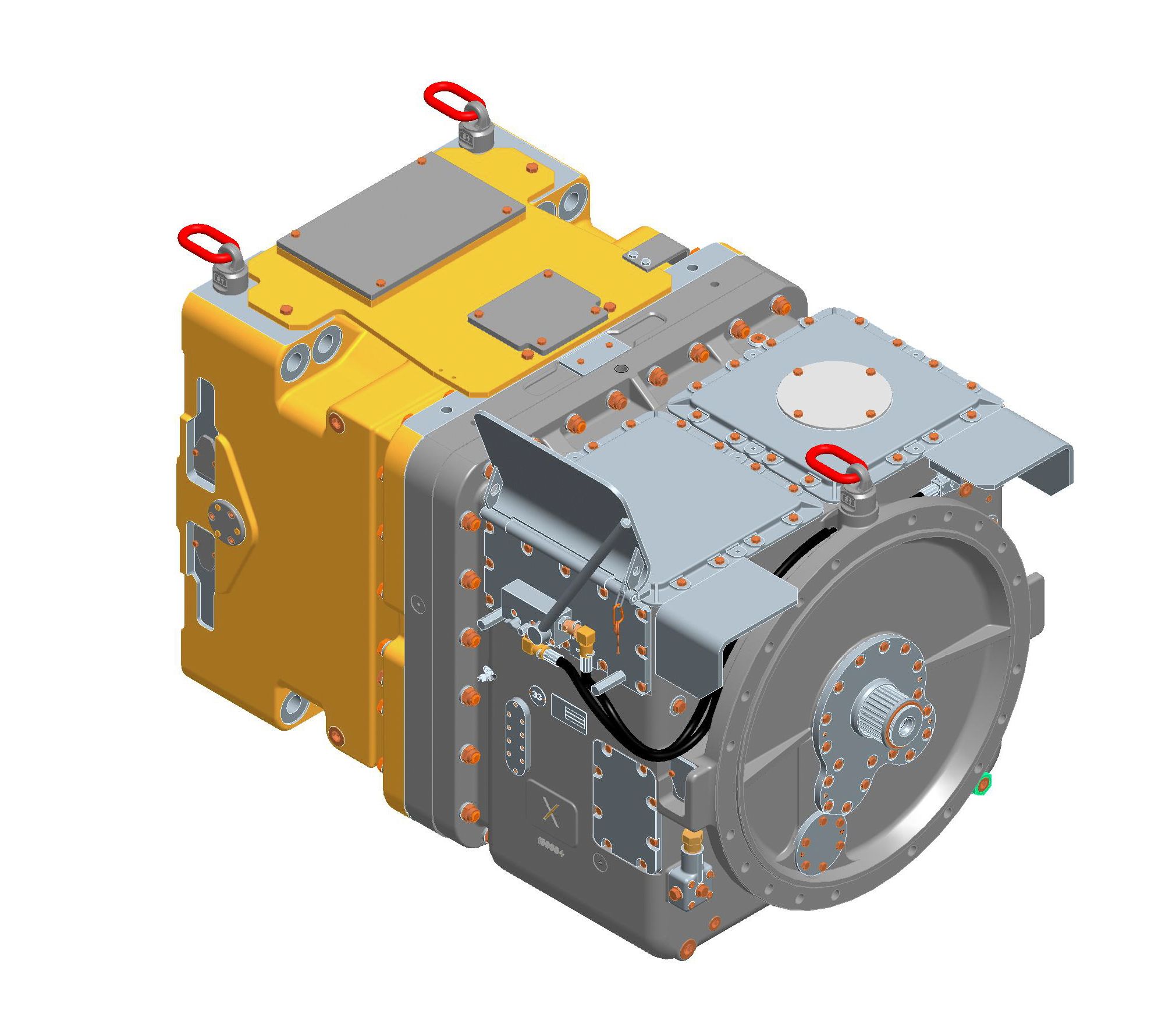

CST45 V Drive System
- Specs
- Media
Specs
Overview
Long Name:
CST45 V Gearbox
Name:
CST45 V
Brand:
Caterpillar
Status:
Current
Specifications
Maximum Output Torque for a Short Duration (3 sec.):
331858.0 ft-lb / 450000.0 N·m
Maximum Input Speed (motor speed) :
1,782 rpm
Weight (without oil) - In-line Drive System:
13000.0 lb / 5900.0 kg
Shaft Design
Input Shaft (cylindrical):
DIN 5480-W 120×4
Output Shaft with Internal Toothing:
DIN 5480-N 260×10×30×24
Requirements of Cooling Water
Maximum Water Inlet Temperature:
25° C/298.15 K (77° F/298.15 K)
Required Cooling Water Quantity:
6.6 gal/min / 25.0 L/min
Dimensions
KP-45 V CST - Height:
41.7 in / 1060.0 mm
KP-45 V CST - Length:
113.2 in / 2875.0 mm
KP-45 V CST - Width:
55.2 in / 1401.0 mm
P-45 V CST - Height:
41.7 in / 1060.0 mm
P-45 V CST - Length:
66.8 in / 1697.0 mm
P-45 V CST - Width:
44.1 in / 1120.0 mm
Typical Application
Description:
Chain Type Longwall Machinery like Armored Face Conveyors (AFC)
Maximum Output Torque (for 3 sec) Tmax [N·m]
KP-45 V CST/P-45 V CST:
331858.0 lb ft / 450000.0 N·m
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 16:
1050 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 21:
1050 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 28:
1050 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 33:
1050 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39:
820 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 45:
710 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 50:
650 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 16:
1,713 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 21:
1,713 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 28:
1,713 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 33:
1,713 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39:
1,338 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 45:
1,158 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 50:
1,061 hp
Capacity
KP-45 V CST - Gearbox Weight (without oil):
21380.0 lb / 9700.0 kg
KP-45 V CST - Oil Quantity:
193.0 gal / 730.0 L
P-45 V CST - Gearbox Weight (without oil):
13000.0 lb / 5900.0 kg
P-45 V CST - Oil Quantity:
114.0 gal / 430.0 L
