In order to achieve the highest possible level of productivity in the longwall, you conveyor technology that is able to keep up with the output of your mining machines. With the Face Conveyor – PF7, you’ll get high drive power, maximum capacity, next-level reliability and increased availability. Is the Face Conveyor – PF7 the right conveyor technology for your operation? Your go-to CAT dealers — Wagner Equipment — can help you find out! Don’t wait; contact us today to get started.
Request a Quote

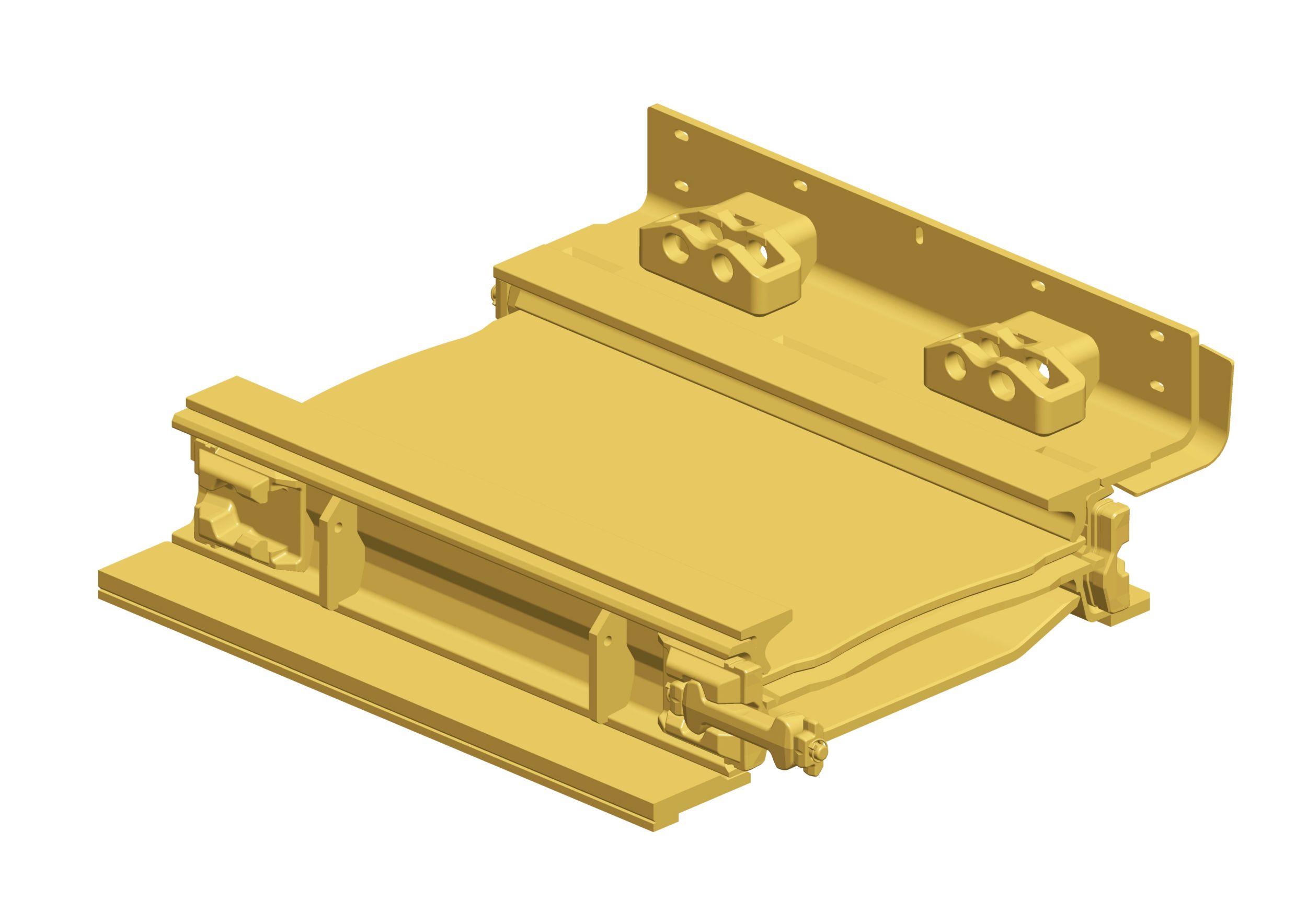

Face Conveyor – PF7
- Specs
- Media
Specs
Overview
Long Name:
Face Conveyor - PF7
Name:
PF7
Brand:
Caterpillar
Status:
Current
Typical Technical Data AFC Line Pan
Top Plate Thickness:
30 + 25 mm (1.18 + 0.98 in)
Bottom Plate Thickness:
1.18 in / 30.0 mm
Dogbone Breaking Force:
1011640.0 lb / 4500.0 kN
Technical Data
Bottom Plate Thickness:
1.18 in / 30.0 mm
Chain Strands:
DKB 60×135/181
Conveying Capacity - approximate:
12.38 ft2 / 1.15 m2
Deck Plate Thickness:
30 + 25 mm (1.18 + 0.98 in)
Dogbone Breaking Strength:
4500 kN (505.82 tonf)
Dogbone Housing FoS:
1.5 times
Flightbar Width:
54.65 in / 1388.0 mm
Horizontal Articulation:
0.8°-1.2°
Line Pan Width:
60.71 in / 1542.0 mm
Profile Height:
13.78 in / 350.0 mm
Shear Strength:
> 6000 kN (> 674.43 tonf)
Vertical Articulation:
up to ±6°
